What Drive Train Does The 2026 Ram 1500 Pickup Offer?
The Ram 1500 continues with a modern drivetrain lineup based on the fully redesigned model introduced last year. The truck uses updated six-cylinder turbocharged gasoline engines and a conventional automatic transmission. Rear-wheel drive and four-wheel drive configurations are available, depending on trim and equipment.

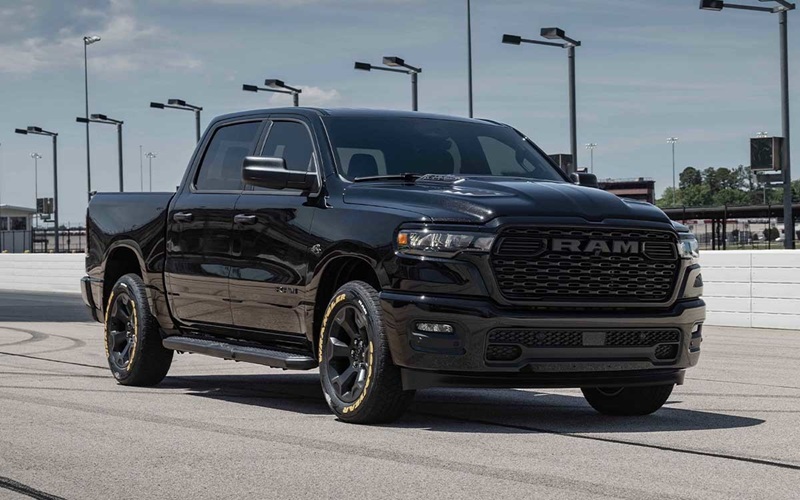

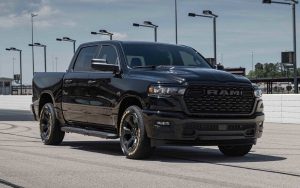

2026 Black RAM 1500
Engine Lineup
The new Ram 1500 uses inline six-cylinder turbocharged gasoline engines from the Hurricane family.
3.0-Litre Hurricane Twin-Turbo Inline Six
The primary engine is a 3.0-litre twin-turbocharged inline six-cylinder gasoline engine.
Key characteristics:
- 3.0-litre displacement
- Twin turbochargers
- Direct fuel injection
- Aluminum block and cylinder head
Two output levels are available depending on trim:
- Standard Output (SO) version
- High Output (HO) version
Both versions use forced induction to increase power and torque while maintaining a six-cylinder configuration.
The previous 5.7-litre HEMI V8 is no longer part of the redesigned Ram 1500 lineup introduced for the 2025 model year, and the new model continues with the six-cylinder configuration.
Transmission System
All Ram 1500 models use an 8-speed automatic transmission.
8-Speed Automatic Transmission
Main characteristics:
- Torque converter automatic design
- Electronic shift control
- Wide gear ratio spread
- Manual shift mode capability
The 8-speed automatic manages torque from the turbocharged engine and distributes it to either the rear wheels or all four wheels, depending on drivetrain configuration.
The transmission supports:
- Towing capability
- Highway efficiency
- Controlled gear changes under load
Gear selection occurs electronically through a rotary selector mounted on the dashboard.
Rear-Wheel Drive Configuration
Rear-wheel drive (RWD) is standard on many Ram 1500 trims.
Rear-Wheel Drive Layout
Key elements:
- Engine mounted longitudinally
- Transmission connected to the rear driveshaft
- Solid rear axle
- Front suspension independent
In this configuration, power flows from the engine through the transmission to a single rear driveshaft and into the rear differential.
Rear-wheel drive offers:
- Balanced weight distribution
- Traditional truck drivetrain layout
- Compatibility with towing and payload requirements
This configuration suits drivers who primarily operate on paved roads or in moderate conditions.
Four-Wheel Drive System
Four-wheel drive (4×4) is available across multiple trims of the Ram 1500.
4×4 Drivetrain Layout
Key components:
- Transfer case
- Front driveshaft
- Front differential
- Rear differential
When engaged, the system distributes torque to both front and rear axles.
The Ram 1500 uses part-time and automatic four-wheel drive systems, depending on trim.
Transfer Case Options
The transfer case controls torque distribution between the front and rear axles.
Electronic Shift-On-The-Fly Transfer Case
This system allows drivers to switch between modes using a dashboard-mounted control.
Typical modes include:
- 2WD
- 4WD High
- 4WD Low
4WD Low provides increased torque multiplication for low-speed operation in demanding terrain.
Automatic Four-Wheel Drive Mode
Some configurations include an automatic mode.
In this mode:
- The system monitors wheel slip
- Torque transfers automatically to the front axle when needed
- Operation returns to rear bias when full traction resumes
This setup supports mixed road conditions without manual mode selection.
Axle and Differential Systems
The Ram 1500 uses solid rear axle construction with coil springs.
Rear Axle
Key characteristics:
- Solid axle design
- Coil spring suspension
- Optional limited-slip differential
The limited-slip differential improves traction by distributing torque between the rear wheels when one wheel loses grip.
Front Differential
On 4×4 models:
- Independent front suspension
- Front differential integrated into drivetrain
- Constant velocity half shafts
The front axle engages when four-wheel drive mode activates.
Electronic Traction Systems
The drivetrain integrates with electronic systems that manage traction and stability.
These systems include:
- Electronic stability control
- Traction control
- Brake-based torque management
When wheel slip occurs, the system can:
- Apply braking force to a slipping wheel
- Reduce engine torque
- Redirect torque to the wheels with grip
These features operate automatically and complement mechanical drivetrain components.
Towing and Torque Distribution
The Hurricane 3.0-litre engine produces substantial torque at low engine speeds due to twin turbochargers. The 8-speed automatic transmission supports towing through optimized gear ratios.
Drivetrain elements that support towing include:
- Torque converter multiplication
- Transmission cooling system
- Heavy-duty rear axle components
- 4WD Low mode for controlled low-speed movement
Maximum towing and payload figures vary by configuration, axle ratio, and trim.
Williamson Chrysler UxBridge can confirm specific drivetrain configurations based on trim level and vehicle build details.
Suspension and Drivetrain Integration
The Ram 1500 uses coil spring rear suspension across the lineup. An available air suspension system adjusts ride height and integrates with the drivetrain.
Air Suspension System
If equipped, the system offers:
- Multiple ride height levels
- Lowered height for highway driving
- Raised height for off-road clearance
The drivetrain operates normally across ride height settings. Ride height adjustments do not change engine or transmission configuration.
Off-Road Oriented Configurations
Certain trims include drivetrain features tailored for off-road conditions.
These may include:
- Electronic locking rear differential
- Skid plates
- Off-road calibrated suspension
- Dedicated terrain drive modes
Drive modes adjust throttle response, transmission shift logic, and traction system calibration to suit surface conditions.
Summary of Drivetrain Offerings
The Ram 1500 offers a modern drivetrain lineup based on turbocharged six-cylinder engines and an 8-speed automatic transmission.
Main drivetrain elements include:
- 3.0-litre Hurricane twin-turbo inline six (Standard Output and High Output)
- 8-speed automatic transmission
- Rear-wheel drive configuration
- Available four-wheel drive system
- Electronic transfer case with selectable modes
- Solid rear axle with optional limited-slip differential
The drivetrain supports towing, daily driving, and off-road operation depending on configuration. Williamson Chrysler UxBridge provides detailed specification verification for individual vehicles.
Questions and Answers
What engine does the 2026 Ram 1500 use?
- It uses a 3.0-litre Hurricane twin-turbocharged inline six-cylinder gasoline engine in Standard Output and High Output versions.
What transmission is available in the 2026 Ram 1500?
- All models use an 8-speed automatic transmission.
Does the 2026 Ram 1500 offer four-wheel drive?
- Yes. Four-wheel drive is available with an electronic transfer case and selectable modes.
What type of rear axle does the Ram 1500 use?
- It uses a solid rear axle with coil springs and an optional limited-slip differential.
Does the drivetrain include an automatic four-wheel drive mode?
- Yes. Some configurations include an automatic mode that transfers torque to the front axle when wheel slip occurs.
